Not every ticket with two visible defects on the same page turns out to have one shared cause. This case study covers a real repair on a bizhub Color Series 8 unit (the C258/C308/C368/C458/C558/C658 platform) where a test print showed two genuinely separate problems at once — thin, repeating magenta lines running across the page at regular intervals, and a dirty, grainy fog sitting over the whole sheet — and explains why these turned out to be two independent drum failures rather than one connected fault.

The Complaint

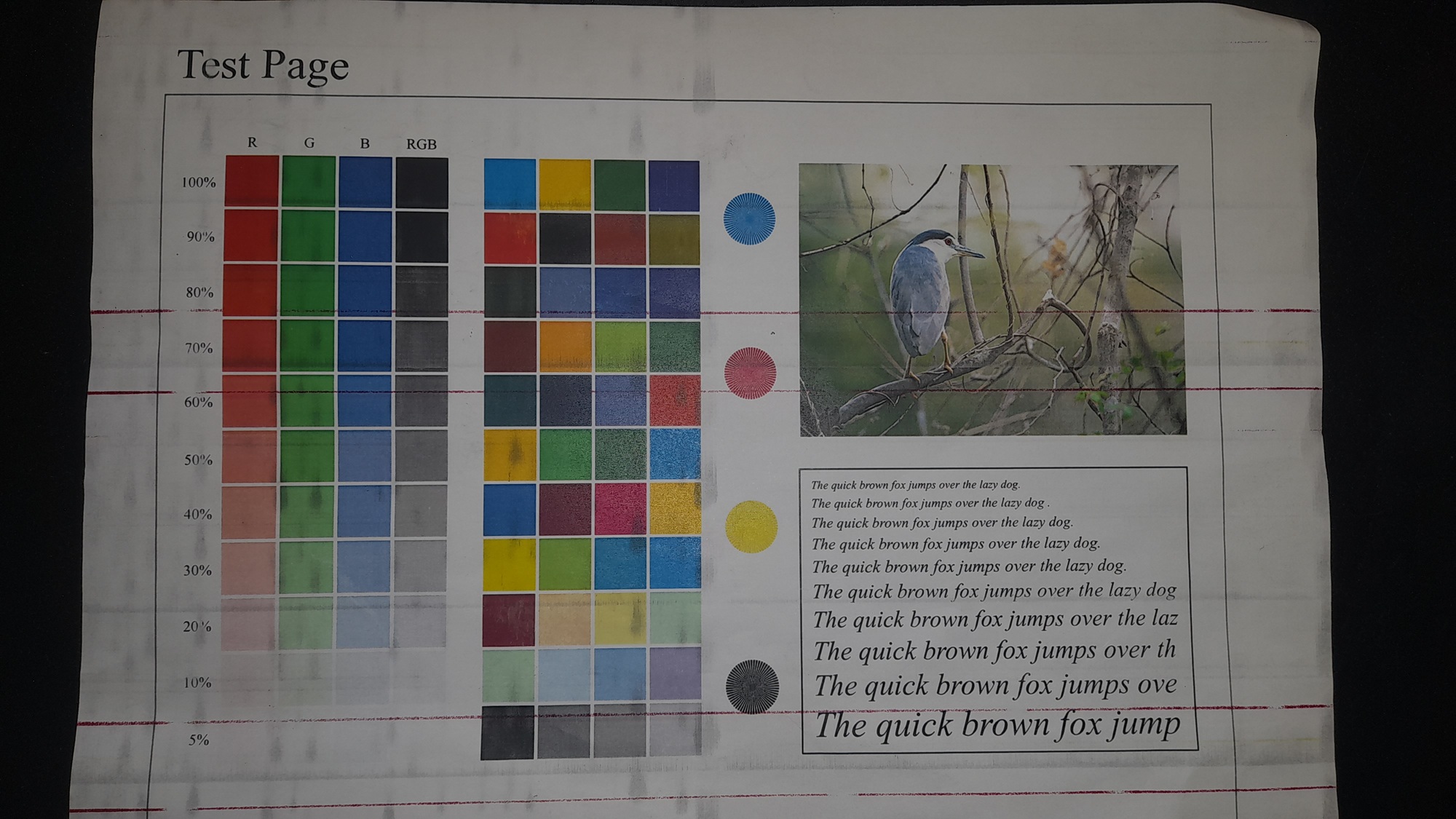

The test page had two things wrong with it that looked, at first glance, like they might be related simply because they showed up on the same sheet. Thin magenta lines ran horizontally across the full width of the page, evenly spaced, repeating at a consistent vertical interval down the sheet. Separately, the entire page had a dirty, grainy texture to it — not a clean, flat background, but a fine speckled fog sitting over everything, most obvious in the light tint columns and in areas that should have printed as flat gray or black.

Why Two Defects on One Page Doesn’t Always Mean One Cause

A useful habit on tickets like this — and one covered in an earlier case study on this site involving a dead Black station and Cyan ghosting — is to check whether two co-occurring faults share a mechanism before assuming they share a cause. In that earlier case, a total dropout in one color and a corrupted signal in another pointed to one shared electrical fault, because the two symptoms had a mechanism in common. Here, the two symptoms don’t share a mechanism at all.

A periodic line that repeats at a fixed vertical distance down the page is the signature of a localized defect on a rotating component — a scratch, pit, or contamination spot on a drum surface that reproduces at the same point on every rotation. A generalized fog covering the whole page, with no interval and no fixed position, is a completely different signature — it’s the sign of a drum that’s lost the ability to hold a clean, uniform charge across its entire surface, letting toner develop where it shouldn’t across broad areas rather than in one narrow band. One is a point defect that repeats; the other is a surface-wide breakdown. There’s no single component fault that produces both patterns at once, which is the tell that this was two separate problems that happened to surface at the same time.

Diagnostic Process

The magenta lines were tracked first, since a repeating interval can be measured and compared against the Magenta drum’s circumference — the spacing matched, pointing at a localized surface defect on the Magenta drum rather than the developing unit or charge roller. The Magenta imaging unit was inspected and showed a surface flaw consistent with the printed line spacing.

The background fog was assessed separately, since a whole-page grain issue doesn’t behave like a component with one bad spot. Fog that’s uniform across the page and worst in light tones and dark solids alike is a classic sign of a drum nearing the end of its service life — the surface can no longer hold charge evenly across its full area, and toner starts developing in places it shouldn’t. Because the fog had a grayish, generalized character rather than a specific color cast, the Black drum was the logical candidate, and inspection of the Black imaging unit was consistent with age-related wear.

The Fix

Both the Magenta and Black imaging units were replaced.

Result

A reprint of the same test page after both swaps came back clean — no repeating magenta lines, and no background fog anywhere on the sheet, including the light tint columns and dark patches where the fog had been most visible.

Takeaway

Two defects on one test page are worth testing against each other before assuming a shared cause. A periodic, measurable interval points at a localized surface defect on a specific rotating component. A generalized, non-periodic fog across the whole page points at broad charge-uniformity failure, usually from a drum reaching end of life. When the two patterns don’t match the same mechanism, treat them as two separate diagnoses — trying to find one root cause that explains both would have sent this repair in the wrong direction.

Refer to service manual for the correct imaging unit part numbers and drum circumference specs for the specific bizhub Series 8 model on the bench, since these details vary slightly across the C258/C308/C368/C458/C558/C658 range.
