Print quality problems do not always originate from a single failed component. In some cases, multiple faults occur simultaneously, making diagnosis more challenging.
This case study documents a real repair on a Konica Minolta bizhub C458 where two separate print quality defects appeared on the same machine:
- A black vertical band caused by a worn Black Drum Unit.
- Severe vertical color smearing caused by a defective Intermediate Transfer Belt (ITB).
The case demonstrates the importance of confirming each repair before assuming all print defects share the same root cause.
Machine Information
| Item | Details |
|---|---|
| Model | Konica Minolta bizhub C458 |
| Problem Type | Print Quality |
| Defect 1 | Black vertical band |
| Defect 2 | Severe vertical color smearing |
| Final Repairs | Replace Black Drum Unit and Intermediate Transfer Belt Unit |
Customer Complaint

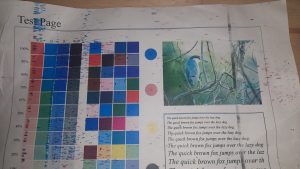

The customer reported poor print quality on all printed pages. An internal test page revealed two distinct defects:
- A solid black vertical band running from the top to the bottom of the page.
- Severe vertical color smearing affecting the cyan and magenta areas of the print.
Because both defects appeared together, it was initially unclear whether they originated from the same component.
Initial Inspection
The first test page confirmed two different print quality issues.
Defect 1 – Black Vertical Band
A continuous black band appeared in the same position on every page.
This symptom is commonly associated with problems in the black imaging system, including:
- Black Drum Unit
- Black Cleaning Blade
- Black Charging System
Defect 2 – Severe Vertical Color Smearing
In addition to the black band, the page showed heavy vertical color smearing, particularly in the cyan and magenta image areas.
The smearing extended from the top to the bottom of the page and remained consistent across multiple prints.
First Repair
The Black Drum Unit was replaced.
Result
The black vertical band disappeared completely.
However, the severe vertical color smearing remained unchanged.
This confirmed that the machine had two separate faults, not a single component failure.
Second Repair Attempt
Attention then shifted to the color imaging system.
The Developer Unit was replaced as part of the troubleshooting process.
After initialization and image stabilization, another test page was printed.
Result
No improvement.
The vertical color smearing remained exactly the same.
Re-evaluating the Diagnosis
At this stage, several observations became important:
- The black band had already been eliminated.
- The remaining defect affected multiple colors.
- Replacing the developer unit produced no improvement.
- The smearing extended continuously through the full page length.
These observations suggested that the problem was occurring after the toner images had been developed.
The investigation therefore shifted to the transfer system.
Root Cause
Inspection of the transfer assembly identified the Intermediate Transfer Belt (ITB) Unit as the source of the remaining defect.
The ITB combines the toner images from all four drum units before transferring the final image to the paper. When the belt surface becomes worn or contaminated, toner can smear as it moves across the belt, producing continuous vertical color streaks.
Final Repair
The Intermediate Transfer Belt Unit was replaced.
After installation, the machine completed image stabilization and another internal test page was printed.
Result
The vertical color smearing disappeared completely.
Print quality returned to normal.
Lessons Learned
This repair illustrates an important diagnostic lesson:
Do not assume that every print defect has the same cause.
In this case:
- The black vertical band was caused by a failed Black Drum Unit.
- The severe vertical color smearing was caused by a defective Intermediate Transfer Belt Unit.
Replacing the black drum solved only one of the two problems. The remaining color smearing was resolved only after replacing the ITB.
Conclusion
This case highlights the importance of separating individual print defects during diagnosis. Although the customer reported a single print quality problem, the machine actually had two independent failures. By addressing each symptom individually and verifying the results after every repair, the correct root cause of each defect was identified, restoring the Konica Minolta bizhub C458 to normal operation.
