Faint, evenly spaced horizontal banding is a defect that can come from more than one rotating component on a bizhub color engine, which makes it one of the harder single-symptom tickets to diagnose by eye alone. This case study follows a real repair on a bizhub Color Series 8 unit (the C258/C308/C368/C458/C558/C658 platform), including the measurement-based method used to identify which component was actually responsible before any parts were swapped.

The Complaint

A test page showed faint, repeating horizontal bands running the width of the sheet, evenly spaced, most visible in light tones near the top of the print where there’s the least ink to mask them. It wasn’t a hard line or a streak — closer to a subtle, periodic mottling that repeated at a fixed interval down the page.

Why This Symptom Doesn’t Point at One Obvious Component

Any component that rotates and contacts the image at some stage of formation can imprint a defect that repeats once per revolution — a drum with a worn or unevenly charging surface, a developing roller with a worn sleeve, or the intermediate transfer belt (ITB) if its surface or drive has degraded. All of these produce the same basic signature: density variation repeating at a fixed distance down the page. That’s exactly why this defect can’t be diagnosed from the visual pattern alone.

The way to actually separate them is to measure the repeat distance of the band pattern on the printed sheet and compare it against the circumference of each rotating candidate — drum, developing sleeve, and ITB drive roller. Whichever one matches is the source.

Diagnostic Process

The repeat distance on the test page was measured and compared against the known circumferences for the imaging unit and the ITB drive roller for this platform. The measurement lined up with the drum, pointing at the imaging unit rather than the transfer belt.

The Fix

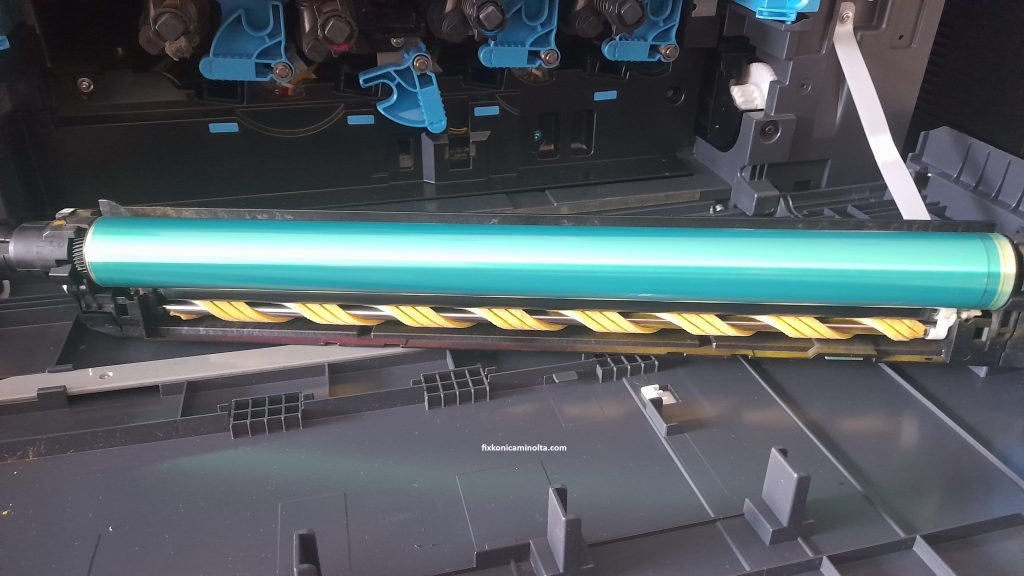

The imaging unit was replaced. A drum surface that has developed fine pitting, glazing, or uneven charge acceptance from extended service life can’t be restored in place — once the surface stops uniformly holding and releasing charge, the only fix is a fresh unit.

Result

A reprint of the same light-gradient test page after the swap showed no banding anywhere on the sheet.

Takeaway

Periodic banding is a distance problem before it’s a parts problem. The drum and the ITB can both produce a nearly identical-looking band on paper, and the only reliable way to choose between them is to measure the repeat interval and match it to a specific component’s circumference — not to guess based on which part is faster to swap. On this unit, that measurement pointed correctly at the imaging unit, and replacing it resolved the defect completely.

Refer to service manual for exact drum, developing sleeve, and ITB circumference specs for the specific bizhub Series 8 model on the bench, since these figures differ across the C258/C308/C368/C458/C558/C658 range.
