Not every print defect on a bizhub color MFP follows a clean, repeating pattern — sometimes the page just looks dirty, with scattered toner specks in no obvious arrangement. This case study covers a real repair on a bizhub Color Series 8 unit (the C258/C308/C368/C458/C558/C658 platform) where random speckling across the entire page, including the blank margins, pointed away from the usual drum and roller suspects and toward the transfer belt instead.
| Platform | bizhub Color Series 8 (C258/C308/C368/C458/C558/C658 family) |
| Symptom | Random scattered toner specks across the entire page, worst in light tint areas and white margins |
| Root Cause | Degraded intermediate transfer belt (ITB) shedding loose toner |
| Fix | Replaced the transfer belt |
| Result | Speckling eliminated, confirmed on reprint |
The Complaint

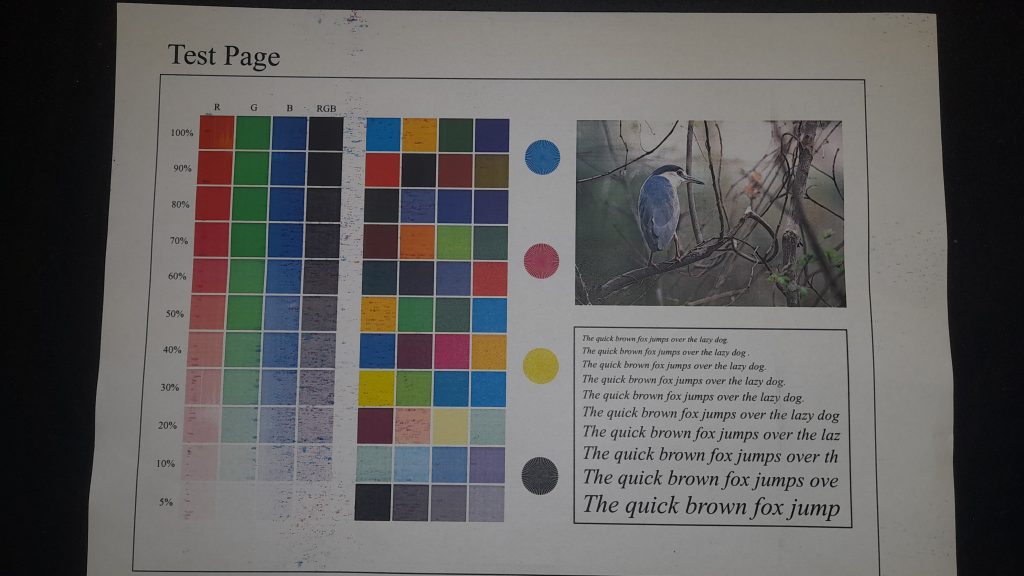

The test page came back looking dirty in a way that was hard to pin down at first glance — small, scattered specks of toner in different colors, no obvious pattern, showing up on the plain white margins just as much as inside the color patches. It was worst in the areas with the least background color to hide it: the light tint columns and the blank borders looked contaminated, almost as if the sheet had been dirty before it ever went through the machine.
Why “Random” Is the Key Word
The first thing worth ruling in or out on any speckling complaint is whether there’s a pattern. A defect that repeats at a fixed distance down the page comes from something rotating with a localized flaw. A defect that lands in the same lateral position on every page comes from something stationary contacting the sheet at a fixed point. This defect was neither — the specks had no consistent interval and no consistent lane. That rules out a rotating component with one bad spot and a stationary component with a fixed defect, and points instead at something shedding loose material unpredictably as the sheet passes through.
The ITB is the component most often responsible for exactly that kind of symptom. Once its surface or its cleaning system starts breaking down, it stops being a clean, controlled hand-off point for toner and starts shedding small amounts unpredictably — different amount, different position, every page.
Diagnostic Process
Several consecutive prints were checked to confirm the speckling was genuinely random rather than a subtle pattern being missed — position and density varied sheet to sheet, supporting a belt/cleaning-system cause over anything periodic or fixed. The toner supply area was checked for a leaking cartridge or spilled toner inside the unit, which would produce a similar-looking symptom; nothing was found there. The ITB itself was then inspected directly and showed a hazy, contaminated surface rather than a clean, uniform one.
The Fix
The transfer belt was replaced.
Result
A reprint of the same light-gradient test page after the swap came back clean — no speckling anywhere on the sheet, including the previously affected white margins.
Takeaway
Speckling with no pattern at all is a different diagnosis from a repeating band or a fixed streak, and it’s worth confirming that “no pattern” before opening the machine up — it saves time by ruling out drums, blades, and fixed components early and pointing straight at the transfer belt and its cleaning system instead.
Refer to service manual for the exact ITB access, removal, and replacement procedure for the specific bizhub Series 8 model on the bench, since these details differ across the C258/C308/C368/C458/C558/C658 range.
